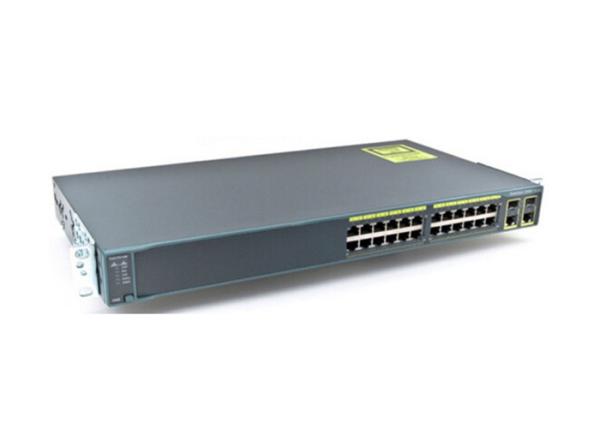

Managed Network Switch CISCO Catalyst 2960 Plus 24 Port SFP LAN
Lite WS-C2960+24TC-S
Product Information
Cisco Catalyst 2960-Plus 24 Ports LAN Lite Switches, supporting 24
x 10/100 ports, are designed for branches, conventional office
workspaces, and infrastructure networks.
• 24 10/100 Fast Ethernet ports
• Small Form-Factor Pluggable (SFP) and 1000BASE-T Gigabit Ethernet
uplinks
• IEEE 802.3af-compliant Power over Ethernet (PoE)
• LAN Base or LAN Lite Cisco IOS Software feature set
• SmartOperations tools that simplify deployment and reduce the
cost of network administration
• Cisco EnergyWise technology to manage energy consumed by
connected devices
• An enhanced limited lifetime hardware warranty (E-LLW), providing
next-business-day replacement
| PRODUCT DETAILS |
|---|
| Device Type | Switch - 24 ports - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Fast Ethernet |
| Ports | 24 x 10/100 + 2 x combo Gigabit SFP |
| Performance | Switching capacity: 16 Gbps
Forwarding performance (64-byte packet size): 6.5 Mpps |
| MAC Address Table Size | 8K entries |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP,
HTTPS, TFTP, SSH-2 |
| Features | Layer 2 switching, auto-sensing per device, DHCP support,
auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP
snooping, Syslog support, DiffServ support, Broadcast Storm
Control, Multicast Storm Control, Unicast Storm Control, Rapid
Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree
Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support,
Port Aggregation Protocol (PAgP) support, Quality of Service (QoS),
Link Aggregation Control Protocol (LACP), Port Security, MAC
Address Notification |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q,
IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE
802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP) |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 44.5 cm x 23.6 cm x 4.4 cm |
| Weight | 3.65 kg |
| Manufacturer Warranty | Limited lifetime warranty |
| Bundled Services | Limited lifetime warranty |
Show the appearance of WS-C2960+24TC-L
Note:
| 1 | Switch LEDs | 3 | 24*10/100 ports |
| 2 | Mode button | 4 | Dual-purpose ports |
Note:
| 1 | RJ-45 console port | 3 | RPS connector |
| 2 | Fan exhaust | 4 | AC power connector |
Table 1. Switch PoE Power Capacity
| Switch Model | Maximum Number of PoE (IEEE 802.3af) Ports* | Available PoE Power |
| Cisco Catalyst 2960-Plus 48PST-L | 24 ports up to 15.4W | 370W |
| Cisco Catalyst 2960-Plus 24PC-L | 24 ports up to 15.4W | 370W |
| Cisco Catalyst 2960-Plus 24LC-L | 8 ports up to 15.4W | 123W |
| Cisco Catalyst 2960-Plus 48PST-S | 24 ports up to 15.4W | 370W |
| Cisco Catalyst 2960-Plus 24PC-S | 24 ports up to 15.4W | 370W |
| Cisco Catalyst 2960-Plus 24LC-S | 8 ports up to 15.4W | 123W |
Table 2. Cisco Catalyst 2960-Plus Series Performance
Performance and Scalability |
| LAN Base (-L) Models | LAN Lite (-S) Models |
| Forwarding bandwidth | 16 Gbps | 16 Gbps |
| Maximum active VLANs | 255 | 64 |
| VLAN IDs available | 4K | 4K |
| Maximum transmission unit (MTU) - L3 packet | 9000 bytes | 9000 bytes |
| Jumbo frame - Ethernet frame | 9018 bytes | 9018 bytes |
